是否进口:否 | 产地:美国 | 加工定制:否 |
品牌:+GF+/signet | 型号:515 | 类型:叶轮式流量计 |
测量范围:100000000m3/h | 精度等级:高 | 公称通径:20-920mm |
适用介质:自来水、纯水、强腐蚀性介质 | 工作压力:14 barMPa | 工作温度:-18-100℃ |
规格:515 |
+GF+ 美国signet

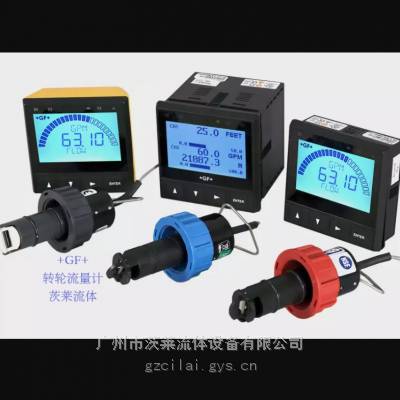

515转轮流量计 标准安装转轮
Simple to install with time honored reliable performance, Model 515 Rotor-X paddlewheel flow sensors are highly repeatable, rugged sensors that offer exceptional value with little or no maintenance. The output signal of the Model 515 is a sinusoidal frequency capable of driving a self-powered flowmeter (Model 5090). The wide dynamic flow range of 0.3 to 6 m/s (1 to 20 ft/s) allows the sensor to measure liquid flow rates in full pipes and can be used in low pressure systems.
The Model 515 sensors are offered in a variety of materials for a wide range of pipe sizes and insertion configurations. The many material choices include PP and PVDF make this model highly versatile and chemically compatible to many liquid process solutions. Sensors can be installed in up to DN900 (36 in.) pipes using Signet's comprehensive line of custom fittings. These custom fittings, which include tees, saddles, and weldolets, set the sensor to the proper insertion depth into the process flow. The sensors are also offered in configurations for wet-tap and intrinsically safe installation requirements.
流量::
流速范围:0.3-6m/s,1-20ft/s
Installs into pipe sizes: DN15 to DN900, 0.5 to 36 in
***大压力等级:PP 12.5bar@20°C,180psi@68°F
PVDF 14 bar@20°C,200psi@68°F
电源:自驱动
转子:PVDF
兼容仪表:5075, 5090, 5500, 5600, 8150, 8550, 8900, 9900, 9950
* 需使用Signet安装件
技术参数
特性
文档
添加项目至申请表格
Standards:
RoHS Compliant认证
NSF (P51530-PX version only)
应用领域:
Chemical Production
Liquid Delivery Systems
Pump Protection
Filtration Systems
Pure Water Production
Not suitable for gases
Scrubber Systems
Water Monitoring
游泳池:
Easy to replace rotor
Installs into pipe sizes DN15 to DN900 (? to 36 in.)
Highly repeatable output
Simple, economical design
Self-powered
Operating range 0.3 to 6 m/s (1 to 20 ft/s)
Wide Turndown Ratio of 20:1
Chemically resistant materials
